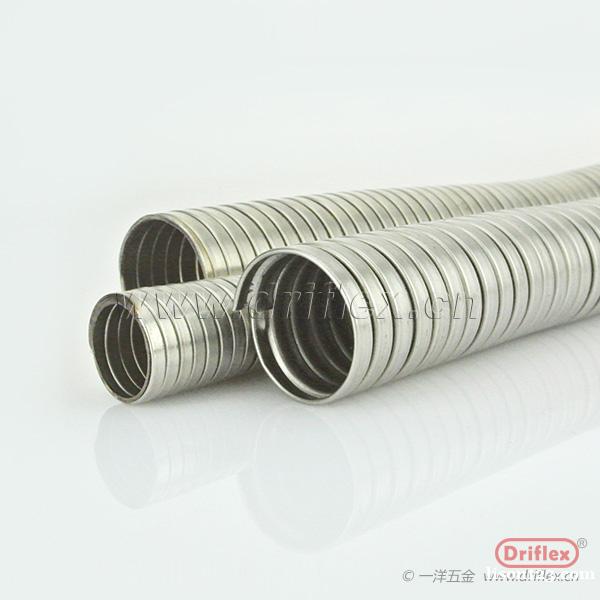

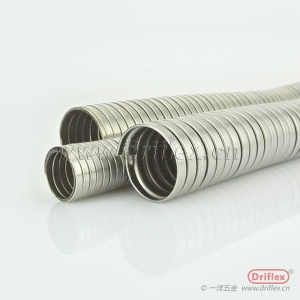

不銹鋼雙勾軟管
Model: FM-12ISS
Description:
不銹鋼制成,結構牢固,絕緣性能和防水性能。撓性好，高抗拉、抗破環(huán)性強、抗疲勞性能高。 耐高溫、耐沖擊、耐腐蝕強，可抵抗不當扭轉損壞等特點。
Part No | Normial Size | Inner Diameter mm | Outside Diameter mm | |||
Length Of Each Roll M | ||||||
| ??FM-2ISS? | 4.0 | 6.0 | 100 | |||
| ??FM-3ISS? | 4.6 | 6.6 | 100 | |||
| ??FM-4ISS? | 5.0 | 7.0 | 100 | |||
| ???FM-5ISS? | 5.4 | 7.8 | 100 | |||
| ??FM-6ISS? | 5.9 | 8.4 | 100 | |||
| ??FM-7ISS? | 6.0 | 8.0 | 100 | |||
| ??FM-8ISS? | 7.0 | 9.0 | 100 | |||
| ?FM-9ISS? | ?1/4"? | 9.5 | 12.5 | 100 | ||
| FM-10ISS | 3/8" | 12.5 | 15.7 | 100 | ||
| FM-11ISS | 1/2" | 16.1 | 19.5 | 100 | ||
| FM-12ISS | 3/4" | 20.8 | 24.3 | 50 | ||
| FM-13ISS | 1" | 26.0 | 30.0 | 50 | ||
| FM-14ISS | 1-1/4" | 34.0 | 39.0 | 50 | ||
| FM-15ISS | 1-1/2" | 39.0 | 44.0 | 30 | ||
| FM-16ISS | 2" | 51.0 | 56.0 | 20 | ||
