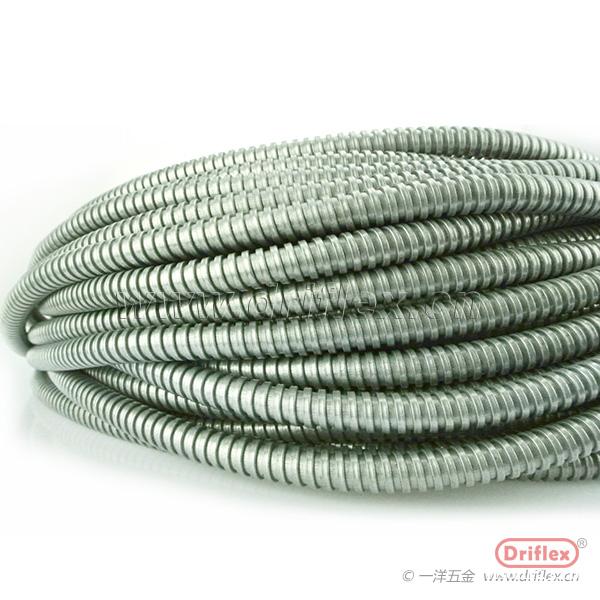

鍍鋅鋼帶單勾軟管
Model: S-12
Description:
鍍鋅鋼帶制成,結構牢固,絕緣性能和防水性能。撓性好，高抗拉、抗破環性強、抗疲勞性能高。 耐高溫、耐沖擊、耐腐蝕強，可抵抗不當扭轉損壞等特點。
Part No | Normial Size | Inner Diameter mm | Outside Diameter mm | O.D After PVC Coated | Length Of Each Roll | |||
Interlocked | Squarelocked | M | ||||||
| S-10 | 3/8" | 12.5 | 15.7 | 18.0 | 16.6 | 50 | ||
| S-11 | 1/2" | 15.7 | 19.1 | 21.3 | 20.0 | 50 | ||
| S-12 | 3/4" | 20.8 | 24.3 | 26.7 | 25.5 | 50 | ||
| S-13 | 1" | 26.0 | 30.0 | 33.2 | 31.6 | 30 | ||
| S-14 | 1-1/4" | 35.0 | 40.0 | 42.2 | 42.0 | 30 | ||
| S-15 | 1-1/2" | 40.0 | 45.0 | 48.0 | 47.0 | 20 | ||
| S-16 | 2" | 51.0 | 56.0 | 59.6 | 59.0 | 10 | ||
